Control MIDI instruments with keyboard knobs in Logic Pro

February 28, 2021

While this feature is well documented, see assign hardware controls to screen controls in Logic Pro, I found that page quite hard to find when looking it up (probably because I was using the wrong keywords), so I’m making this article in the hope to help other people who don’t necessarily think about the terms “hardware controls” and “screen controls”.

I’ve also made a video about this, check it out!

I found this feature not very intuitive to find; the last time I needed it, I even knew it existed and that I did it in the past but I couldn’t figure where I could assign the physical knobs again.

I’m using a MIDI keyboard, actually a microKORG synth that I plug as MIDI in Logic Pro, which comes with a set of knobs that, as a synth, allow controlling the cutoff, resonance, attack and release, and as a MIDI controller, send MIDI events.

By default when this keyboard is plugged in MIDI, those knobs do nothing, and I was wondering how to make them control Logic’s virtual instruments.

Assign physical knobs to virtual instrument

For this, you need to open the Smart Controls panel (e.g. by pressing B). In this panel, make sure you’re in the Controls tab (it usually also shows Transform and EQ).

On the top left of that panel, there’s a little button, click it to show the inspector, which allows you to create external assignments!

By the Learn button, you can select one of the controls on the right (e.g. CUTOFF), and turn the physical knob that you want to assign. Logic should understand the matching MIDI signal and add the assignment.

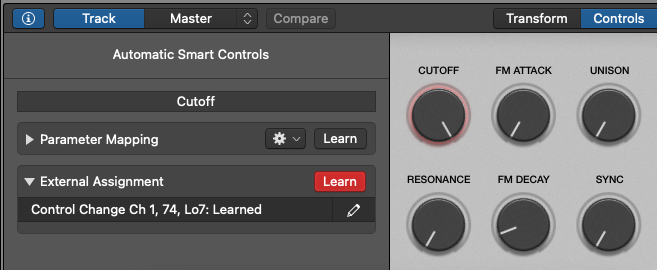

Controls panel

You can then click on another control, turn another physical knob again, until you’re satisfied, then you can stop the learning process by clicking again the Learn button.
